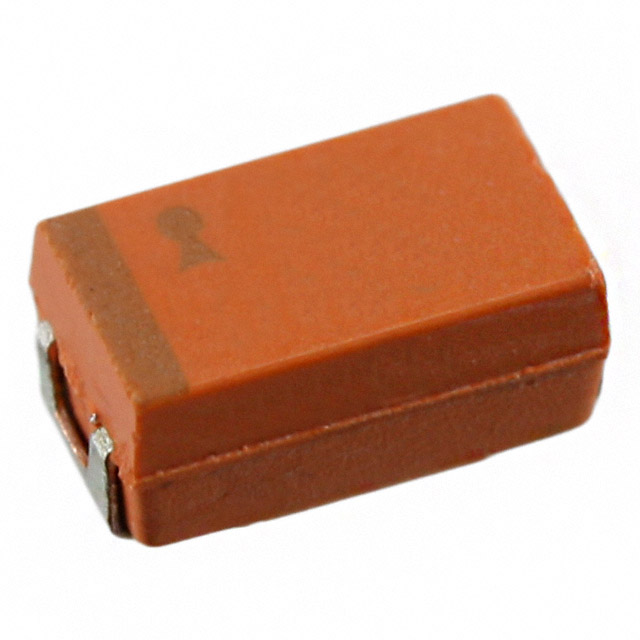

NOSC157M004R0090

Cap Niobium 150uF 4V 20% 6 X 3.2 X 2.6mm SMD 0.09Ω 125℃ T/R

Functionality and performance are reliable and consistence with this niobium electrolytic capacitor made from due to the use of passivated niobium metal or niobium monoxide for the anode electrode and niobium pentoxide as the dielectric. It can withstand a voltage of 4 VDC. This niobium oxide capacitor has a maximum operating temperature of 125 °C. Its leakage current is 12 μA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its capacitance value is 150uF. It has a tolerance of 20%. This product is 6 mm long, 2.6 mm tall and 3.2 mm deep.
