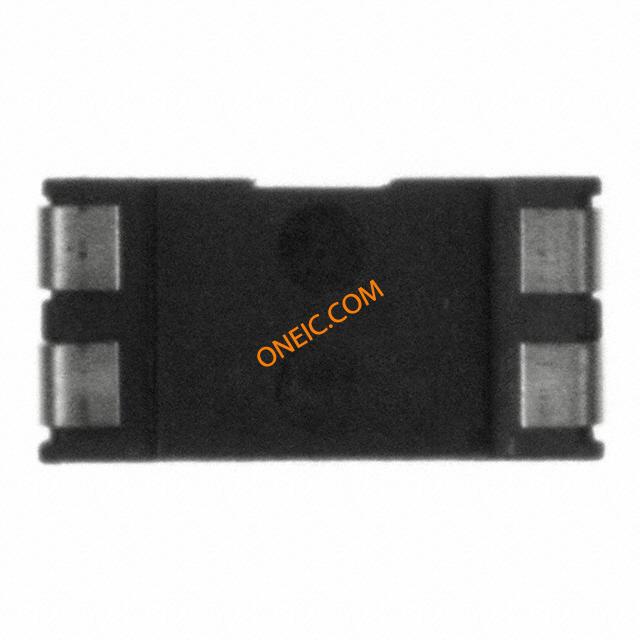

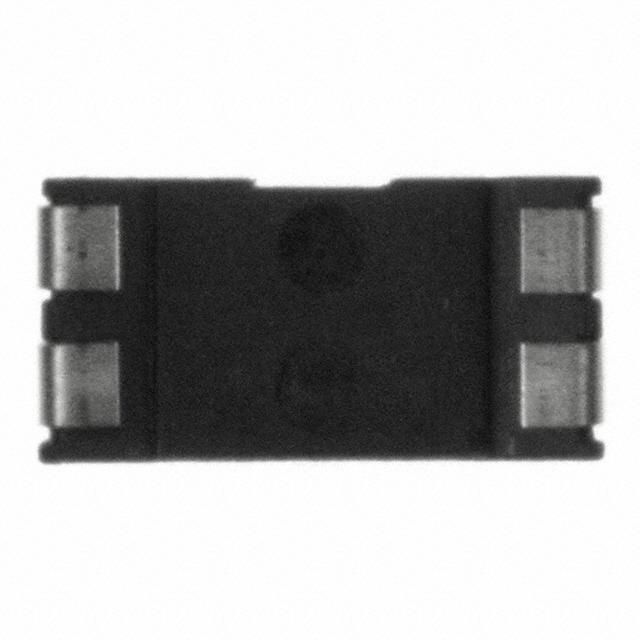

70AAJ-2-F0G

70AA /女 - 模块化联系 70AA/Female - Modular Contact

2 针位弹簧 压缩触点，母型 连接器 表面贴装型

得捷:
CONN SPRING MOD FEMALE 2POS SMD

艾睿:
Use this modular contact 70AAJ-2-F0G power connector from Bourns to power up your circuit without having to worry about energy seepage. This F connector&s;s 2 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a maximum voltage rating of 60 V. It has a straight body orientation. It has a female type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. 70AAJ-2-F0G is housed in thermoplastic. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This power connector has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product is 4.98 mm long, 1.27 mm tall and 10 mm deep. Its 2 terminals use the solder termination method.

Chip1Stop:
Conn Modular Contact F 2 POS 2.54mm Solder ST SMD 2 Terminal 1 Port Embossed T/R

Verical:
Conn Modular Contact F 2 POS 2.54mm Solder ST SMD 2 Terminal 1 Port T/R

MASTER:
Conn Modular Contact F 2 POS 2.54mm Solder ST SMD 2 Terminal 1 Port T/R

Online Components:
Conn Modular Contact F 2 POS 2.54mm Solder ST SMD 2 Terminal 1 Port T/R

Electro Sonic:
Conn Modular Contact F 2 POS 2.54mm Solder ST SMD 2 Terminal 1 Port T/R
