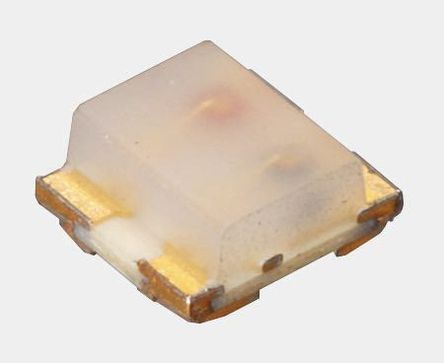

SML-522 系列 黄色/绿色 1.3 x 1.5 x 0.6 mm 漫射式 40/63 mcd 2.2 V 表面贴装 LED
SML-522 Series Green/Yellow 0605 Diffused 40/63 mcd 2.2 V Surface Mount
得捷:
LED GRN/YELLOW DIFFUSED 1315 SMD
贸泽:
Standard LEDs - SMD LED Bi-Color Green Yellow
艾睿:
LED Bi-Color Green/Yellow 4-Pin Chip 06051611Metric T/R
安富利:
LED Bi-Color Yellow/Yellow Green Chip LED 4-Pin 0605 T/R
富昌:
SML-522 系列 黄色/绿色 1.3 x 1.5 x 0.6 mm 漫射式 40/63 mcd 2.2 V 表面贴装 LED
Verical:
LED Bi-Color Green/Yellow 4-Pin Chip 06051611Metric T/R
Newark:
# ROHM SML-522MY8WT86 LED, SML-52, Yellow, Yellow Green, Y 63mcd, YG 40mcd, Y 2.2V, YG 2.2V, Y 20mA, YG 20mA
Win Source:
LED GRN/YELLOW DIFFUSED 1315 SMD / Green, Yellow 572nm Green, 590nm Yellow LED Indication - Discrete 2.2V Green, 2.2V Yellow 0605 1513 Metric
额定功率 54 mW
正向电压 2.2 V
波长 572nm Green,590nm Yellow
耗散功率 54 W
测试电流 20 mA
正向电流 20 mA
正向电流Max 20 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 54 mW
安装方式 Surface Mount
引脚数 4
封装 0605
高度 0.70 mm
封装 0605
颜色 Green, Yellow
工作温度 -40℃ ~ 85℃
外观颜色 White
产品生命周期 Not Recommended for New Designs
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SML-522MY8WT86 ROHM Semiconductor 罗姆半导体 | 当前型号 | 当前型号 |
SML-521MYWT86NR 罗姆半导体 | 功能相似 | SML-522MY8WT86和SML-521MYWT86NR的区别 |
