0022102041

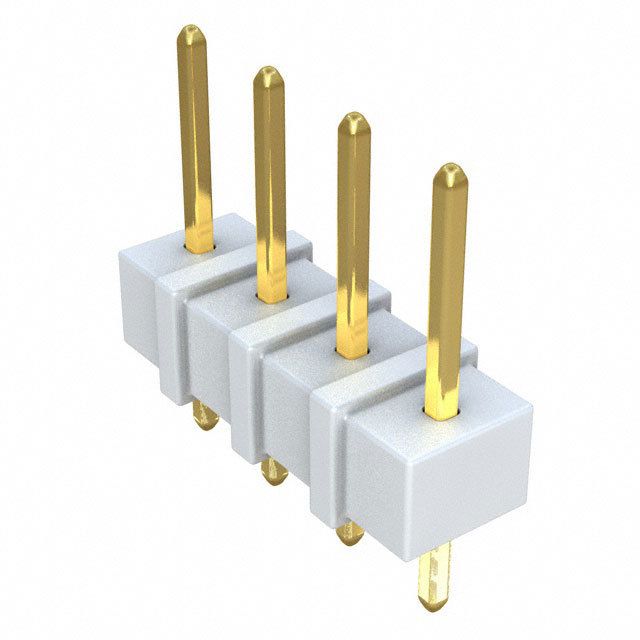

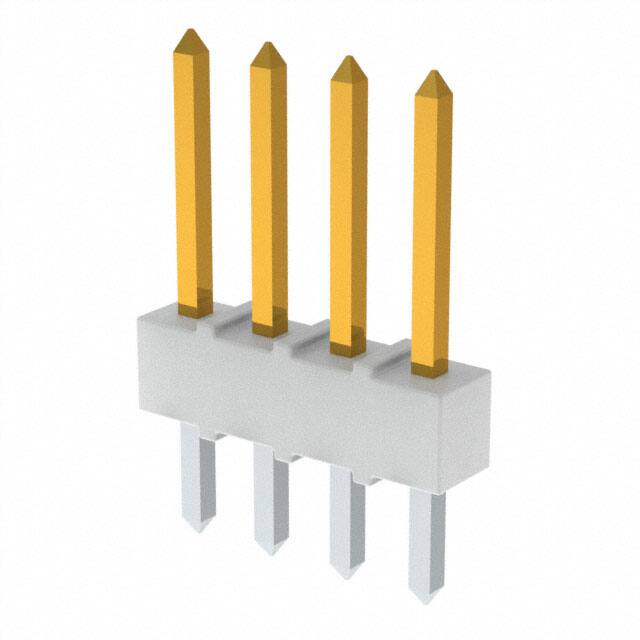

2.54毫米（ .100 ）间距KK®线对板头，单列，立式， 4回路，PA聚酰胺尼龙，金（Au ）镀层 2.54mm .100 Pitch KK® Wire-to-Board Header, Single Row, Vertical, 4 Circuits, PA Polyamide Nylon, Gold Au Plating

Connector Header Through Hole 4 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 4POS 2.54MM

立创商城:
2.54mm 方针

艾睿:
Think of Molex&s;s unshrouded 0022102041 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 4 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 250 V. It has a header type gender. This is a 1-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 4 A/contact. This product is 9.91 mm long, 10.79 mm tall and 2.34 mm deep. This connector has an operating temperature of -40 to 80 °C. It uses the solder termination method. 0022102041 is housed in white nylon.

安富利:
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bulk
