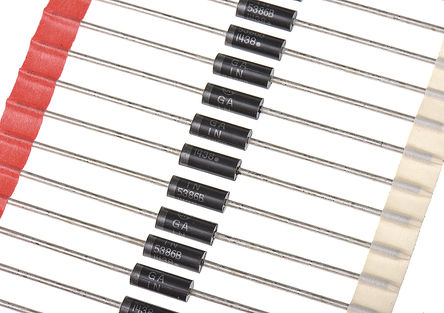

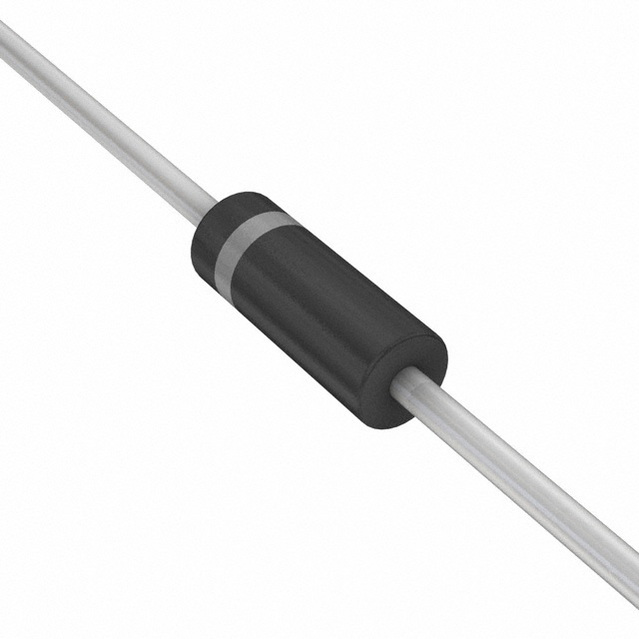

ON SEMICONDUCTOR 1N5386BRLG 齐纳二极管, VZ:180V
齐纳 5W Surmetic,1N5364 至 1N5388 系列,
完整的 5 W 系列,带严格限制和增强型工作特性。
立创商城:
1N5386BRLG
得捷:
DIODE ZENER 180V 5W AXIAL
欧时:
ON Semiconductor 1N5386BRLG 单路 齐纳二极管, 180V 5% 5 W, 2引脚 DO-15封装
贸泽:
Zener Diodes 180V 5W
e络盟:
单管二极管 齐纳, 180 V, 5 W, 轴向引线, 5 %, 2 引脚, 200 °C
艾睿:
When your circuit requires a diode to act in the reverse-breakdown region use a voltage regulator 1N5386BRLG zener diode from ON Semiconductor. Its maximum power dissipation is 5000 mW. Its test current is 5 mA. This device has a maximum regulator current of 26.4 mA. Its maximum leakage current is 0.5 μA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener device has a nominal voltage of 180 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 200 °C.
Allied Electronics:
1N5386BRLG Zener Diode; 180V 5% 5 W Through Hole 2-Pin DO-15
安富利:
Diode Zener Single 180V 5% 5W 2-Pin Case 017AA-01 T/R
富昌:
1N5386B Series 5 W 1 A 180 V Axial Zener Voltage Regulator Diode - CASE-017AA
Chip1Stop:
Diode Zener Single 180V 5% 5W 2-Pin Case 017AA-01 T/R
Verical:
Zener Diode Single 180V 5% 430Ohm 5000mW 2-Pin Case 017AA-01 T/R
Newark:
# ON SEMICONDUCTOR 1N5386BRLG Zener Single Diode, 180 V, 5 W, 017AA, 5 %, 2 Pins, 200 °C
罗切斯特:
Diode Zener Single 180V 5% 5W 2-Pin Case 017AA-01 T/R
额定电压DC 180 V
容差 ±5 %
额定功率 5.00 W
无卤素状态 Halogen Free
针脚数 2
正向电压 1.2V @1A
耗散功率 5 W
测试电流 5 mA
稳压值 180 V
正向电压Max 1.2 V
额定功率Max 5 W
工作温度Max 200 ℃
工作温度Min -65 ℃
耗散功率Max 5 W
安装方式 Through Hole
引脚数 2
封装 DO-35-2
长度 8.89 mm
宽度 3.68 mm
高度 3.68 mm
封装 DO-35-2
工作温度 -65℃ ~ 200℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5386BRLG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N5386BG 安森美 | 类似代替 | 1N5386BRLG和1N5386BG的区别 |
1N5386B 安森美 | 类似代替 | 1N5386BRLG和1N5386B的区别 |
1N5386BRL 安森美 | 类似代替 | 1N5386BRLG和1N5386BRL的区别 |
