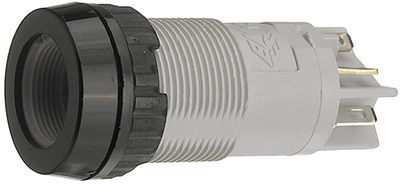

1.15.112.121/0000图片1
1.15.112.121/0000图片2
1.15.112.121/0000图片3
1.15.112.121/0000图片4
1.15.112.121/0000图片5
1.15.112.121/0000图片6
1.15.112.121/0000图片7
1.15.112.121/0000概述

RAFI  1.15.112.121/0000  照明式按钮开关, 1常开 / 1常闭, 关-开, 2 A

The is an illuminated momentary Pushbutton Switch with Ag contacts, rectangular black collar and flush lens. This switch is designed with bridge contact system and BA9s lamp socket.

.
Ring nut mounting
.
-25 to 85°C Operating temperature range

e络盟:
RAFI  1.15.112.121/0000  照明式按钮开关, 1常开 / 1常闭, 关-开, 2 A


艾睿:
Switch Push Button N.O./N.C. DPST Round Button 2A 250VAC Momentary Contact Screw Panel Mount


Newark:
# RAFI  1.15.112.121/0000  Illuminated Pushbutton Switch, 1NC / 1NO, Off-On, 2 A


1.15.112.121/0000中文资料参数规格
技术参数

排数 2

额定电流Max 2 A

工作温度Max 85 ℃

工作温度Min -25 ℃

接触电阻Max 200 mΩ

外形尺寸

高度 54.5 mm

物理参数

触点材质 Silver

外壳材质 Plastic

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买1.15.112.121/0000
型号: 1.15.112.121/0000
制造商: RAFI 纳安斐电子
描述:RAFI  1.15.112.121/0000  照明式按钮开关, 1常开 / 1常闭, 关-开, 2 A
