DrMOS FET plus 驱动器模块，Fairchild SemiconductorIntel DrMOS 规格模块是全面优化的集成驱动器及 MOSFET 功率级解决方案，用于高电流、高频率、同步压降直流-直流应用。### 非隔离直流/直流转换器，Fairchild Semiconductor
Say goodbye to transistors not being provided proper biasing current by using this power driver by Semiconductor. Its typical operating supply voltage is 5 V. This device has a maximum propagation delay time of 25typ ns. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. This gate driver has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
上升时间 10 ns
输入电压Max 5.5 V
输入电压Min 4.5 V
输出电流Max 50 A
下降时间 10 ns
下降时间Max 10 ns
上升时间Max 15 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 40

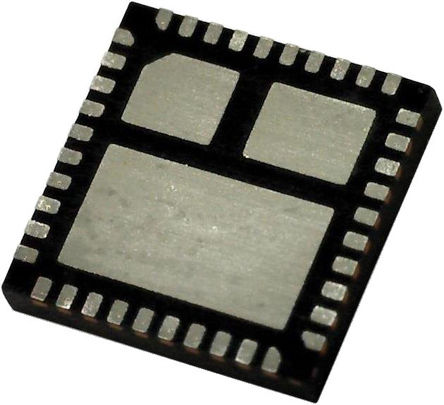

封装 PQFN-40
长度 6 mm
宽度 6 mm
高度 1.1 mm
封装 PQFN-40
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 同步降压转换器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
