IL4208

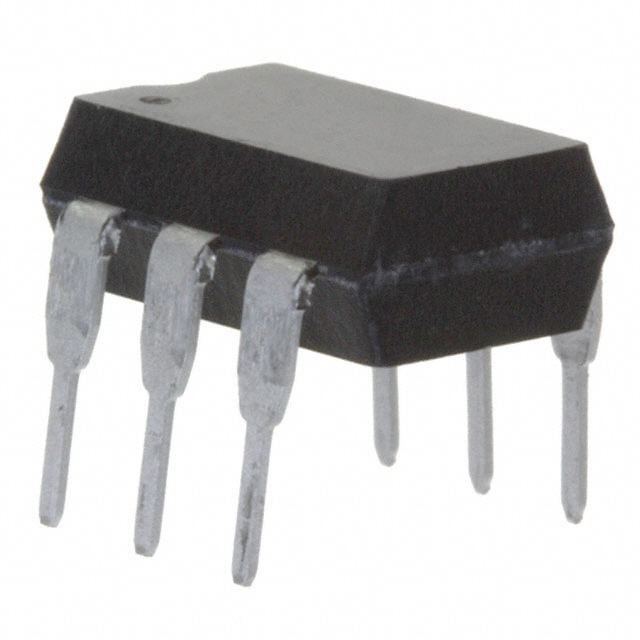

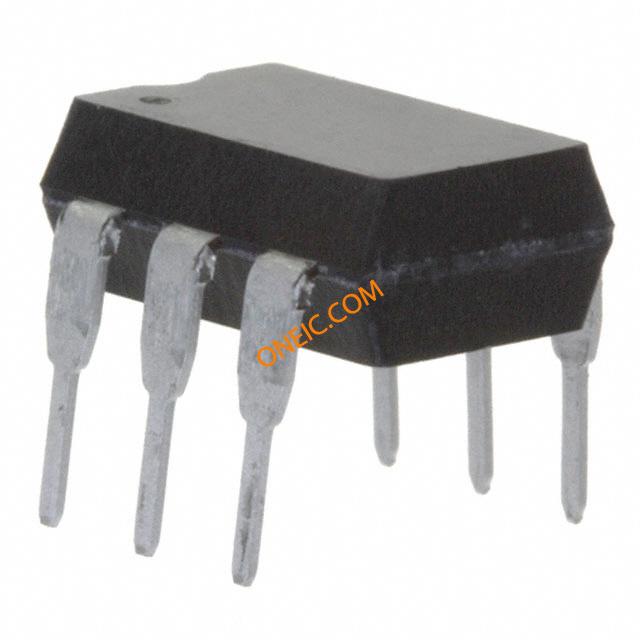

VISHAY  IL4208...  光电耦合器, 三端双向可控硅输出, DIP, 6 引脚, 5.3 kV, 非过零, 800 V

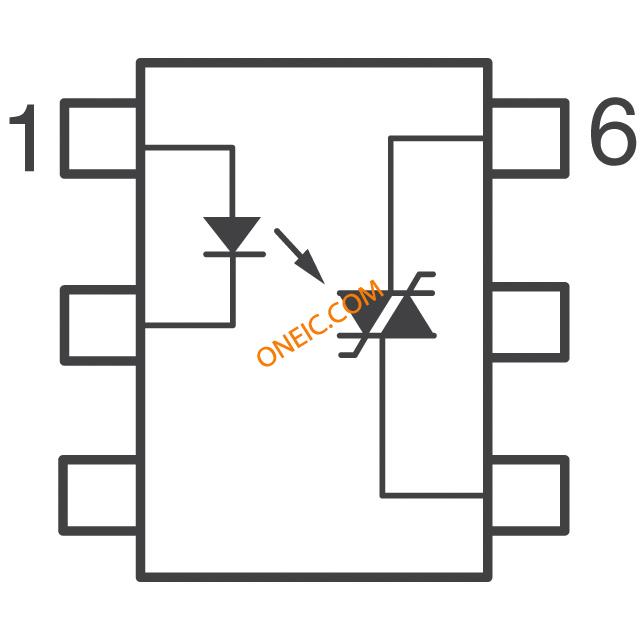

The is a low input current PhotoTRIAC Output Optocoupler consists of a GaAs IRLED optically coupled to a photosensitive non-zero crossing TRIAC network. The TRIAC consists of two inverse parallel connected monolithic SCRs. High input sensitivity is achieved by using an emitter follower phototransistor and a cascaded SCR pre-driver resulting in an LED trigger current of less than 2mA DC. The use of a proprietary dV/dt clam results in a static dV/dt of greater than 10kV/µs. This clamp circuit has a MOSFET that is enhanced when high dV/dt spikes occur between MT1 and MT2 of the TRIAC. When conducting, the FET clamps the base of the phototransistors, disabling the first stage SCR pre-driver.

.

300mA On-state current
