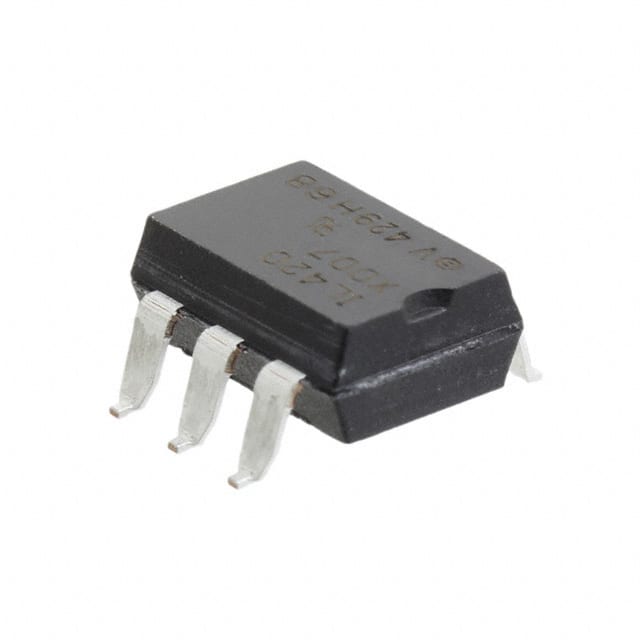

IL4108-X009T

三极与 SCR 输出光电耦合器 Phototriac Output Zero Crossing

DESCRIPTION

The IL410 and IL4108 consists of a GaAs IRLED optically coupled to a photosensitive zero crossing TRIAC network. The TRIAC consists of two inverse parallel connected monolithic SCRs. These three semiconductors are assembled in a six pin dual in-line package.

FEATURES

• High input sensitivity

• IFT = 2 mA, PF = 1.0

• IFT = 5 mA, PF 1.0

• 300 mA on-state current

• Zero voltage crossing detector

• 600 V, 800 V blocking voltage

• High static dV/dt 10 kV/μs

• Very low leakage < 10 A

• Isolation test voltage 5300 VRMS

• Small 6 pin DIP package

• Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

APPLICATIONS

• Solid-state relays

• Industrial controls

• Office equipment

• Consumer appliances
