IDSD-27-D-16.00-G

SAMTEC IDSD-27-D-16G Ribbon Cable, IDC 54Position Receptacle, IDC 54Position Receptacle, 54 Ways, 16 ", 406mm New

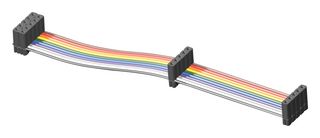

The from is a 0.1" 2.54mm pitch, double row slim body IDC ribbon socket cable assembly. This cable assembly mates with shrouded terminal strips, ejector headers and locking clips. It also mates with TSW, MTSW, TSM, EJH, PHT, HMTSW, HTSW, HW, DW, EW, ZW, MTLW, TST, HTST, ZST, BST and EJH connectors.

.

IDC 54 position receptacle with 16inch grey cable

.

Double ended cable assembly socket on each ends

.

Beryllium copper Beck contacts with 10µ" 0.25µm gold plating

.

28AWG, 7/36 stranded tinned copper wire

.

Temperature range from -40°C to 105°C

.

Current rating of 3.4A per pin 1 position powered per row

.

Black glass filled polyester insulator material

.

Contact resistance of 15mohm

.

UL E111594 recognized
