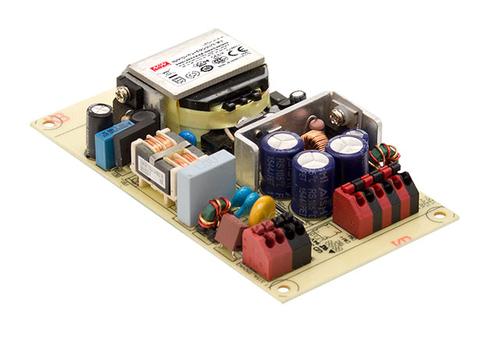

LED Driver CC 45W 1400mA Linear 19-32VDC 90-295VAC PFC PWM, 0-10V Dimming Open Frame
Cannot use w/AC Wall Dimmer
得捷:
LED DRVR CC AC/DC 19-32V 1.4A
贸泽:
LED Power Supplies 44.8W 19-32V 1400mA Open CC 2in1 Dimming
艾睿:
AC/DC LED Power Supply 44.8W Single 8-Pin
安富利:
LED DRVR Module 1-CH PWM 32V 1.4A
TME:
Pwr sup.unit: switched-mode; LED; 44.8W; 19÷32VDC; 1400mA; 140g
Online Components:
Cannot use w/AC Wall Dimmer
Electro Sonic:
AC/DC LED Power Supply - Const Curr - 44.8W - Fixed:50 Vdc @ 1,400mA - Dim: 0-10 Vdc/PWM
CDI:
LED Driver CC 45W 1400mA Linear 19-32Vdc 90-295Vac PFC PWM, 0-10V Dimming Open Frame
额定功率 44.8 W
输出接口数 1
输出电压 19VDC ~ 32VDC
输出电流 1400 mA
通道数 1
输出功率 44.8 W
输入电压DC Max 417 V
输入电压DC Min 127 v
输入电压AC Max 295 v
输入电压AC Min 90 v
输出电压Max 32 V
输出电压Min 19 V
输出电流Max 1400 mA
输出功率Max 44.8 W
工作温度Max 40 ℃
工作温度Min -20 ℃
电源电压 90.295VAC, 127.417VDC
输入电压 90VAC ~ 295VAC, 127VDC ~ 417VDC
引脚数 8
封装 Open Frame
长度 12 mm
宽度 66.5 mm
高度 25 mm
封装 Open Frame
重量 140 g
工作温度 -20℃ ~ 40℃
产品生命周期 Active
RoHS标准 RoHS Compliant
