单向 7.02V

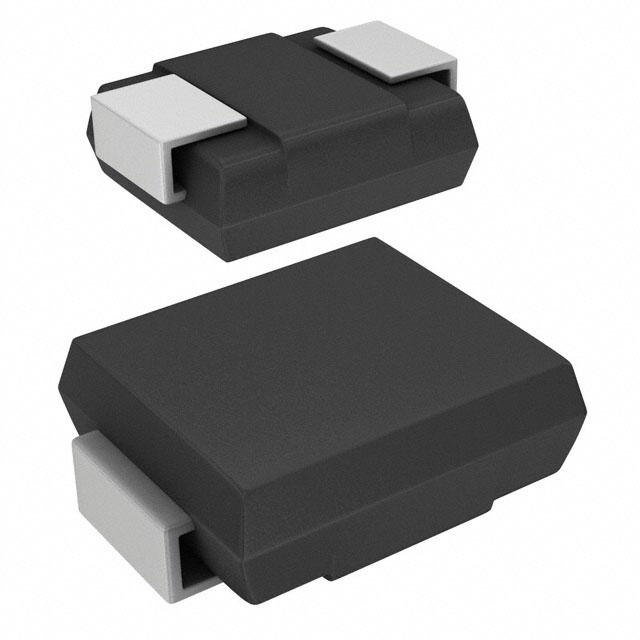

12.1V Clamp 125.6A Ipp Tvs Diode Surface Mount DO-214AB SMC
立创商城:
单向 Vrwm:7.02V 1.5kW
得捷:
TVS DIODE 7.02VWM 12.1VC DO214AB
贸泽:
ESD Suppressors / TVS Diodes 12.1V 1500W 125.6A
艾睿:
This SMCJ1.5KE8.2A-TP TVS diode from Micro Commercial Components is a must-have if your electronic equipment may be exposed to overvoltage conditions. This device&s;s maximum clamping voltage is 12.1 V and minimum breakdown voltage is 7.79 V. Its test current is 10 mA. Its maximum leakage current is 200 μA. Its peak pulse power dissipation is 1500 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Uni-Dir 7.02V 1.5KW 2-Pin SMC T/R
Win Source:
TVS DIODE 7.02VWM 12.1VC SMC
击穿电压 8.61 V
电路数 1
耗散功率 1.5 kW
钳位电压 12.1 V
最大反向电压(Vrrm) 7.02V
测试电流 10 mA
脉冲峰值功率 1500 W
最小反向击穿电压 7.79 V
工作温度Max 150 ℃
工作温度Min 55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 8.13 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
