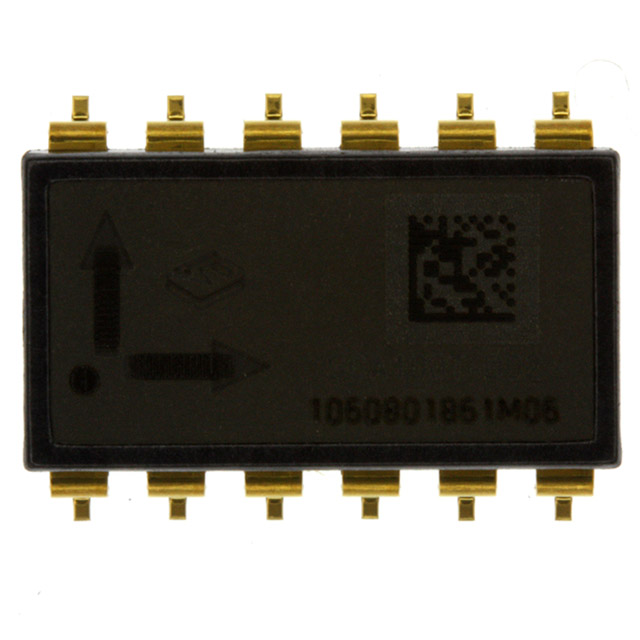

SCA100T-D02

MURATA  SCA100T-D02  模块, MEMS, 4.75 V, 5.25 V, SMD, 12 引脚

The is a 3D-MEMS-based Dual-axis Inclinometer family that provides instrumentation grade performance for levelling applications. The measuring axes of the sensing elements are parallel to the mounting plane and orthogonal to each other. Low temperature dependency, high resolution and low noise, together a with robust sensing element design, make the SCA100T the ideal choice for levelling instruments. The Murata inclinometers are unsensitive to vibration, due to their over damped sensing elements and can withstand mechanical shocks of up to 20000g.

.

Dual axis inclination measurement X and Y

.

±90° Measuring range

.

0.0035° Resolution 10Hz BW, analogue output

.

Sensing element controlled over damped frequency response -3dB 18Hz

.

Robust design, high shock durability 20000g

.

High stability over-temperature and time

.

Ratiometric analogue voltage outputs

.

Digital SPI inclination and temperature output

.

Comprehensive failure detection features

.

-40 to +125°C Operating temperature range

ESD sensitive device, take proper precaution while handling the device.
