SSQ-102-02-G-D-RA

Conn Socket Strip SKT 4POS 2.54mm Solder RA Thru-Hole

4 位置 插座 0.100"（2.54mm） 通孔，直角 镀金

得捷:
CONN RCPT 4POS 0.1 GOLD PCB R/A

艾睿:

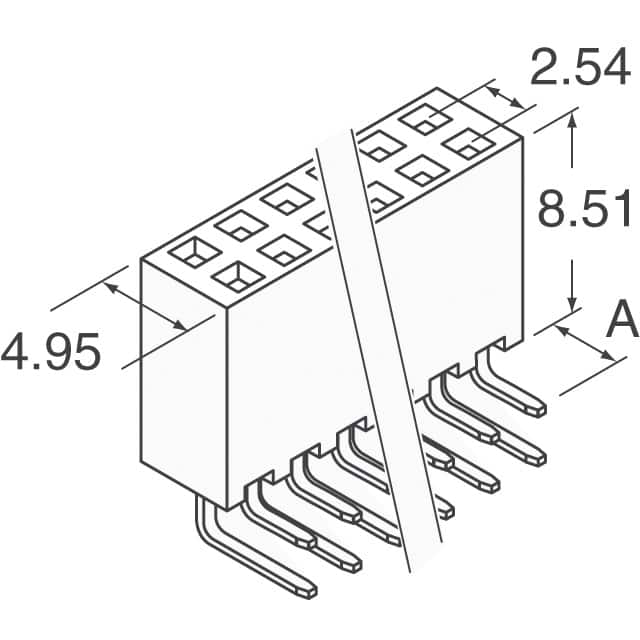

This socket strip SSQ-102-02-G-D-RA header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This SKT connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. This is a 2-row connector. It has a socket type gender. Its pitch is 2.54 mm. It has a right angle body orientation. This device has a maximum current rating of 6.3 A/contact. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 5.59 mm long, 4.95 mm tall and 12.57 mm deep. SSQ-102-02-G-D-RA is housed in black liquid crystal polymer.
