IX4427 系列 30 V 1.5 A 双 低边 超快 MOSFET 驱动器 - SOIC-8
Say goodbye to transistors not being provided proper biasing current by using this power driver by Ixys Corporation. This device has a maximum propagation delay time of 60 ns. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This gate driver has an operating temperature range of -40 °C to 125 °C. This device has a minimum operating supply voltage of 4.5 V and a maximum of 30 V.
上升/下降时间 10ns, 8ns
输出接口数 2
输出电流 1.5 A
上升时间 10 ns
下降时间 8 ns
下降时间Max 20 ns
上升时间Max 20 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 30V
电源电压Max 35 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8

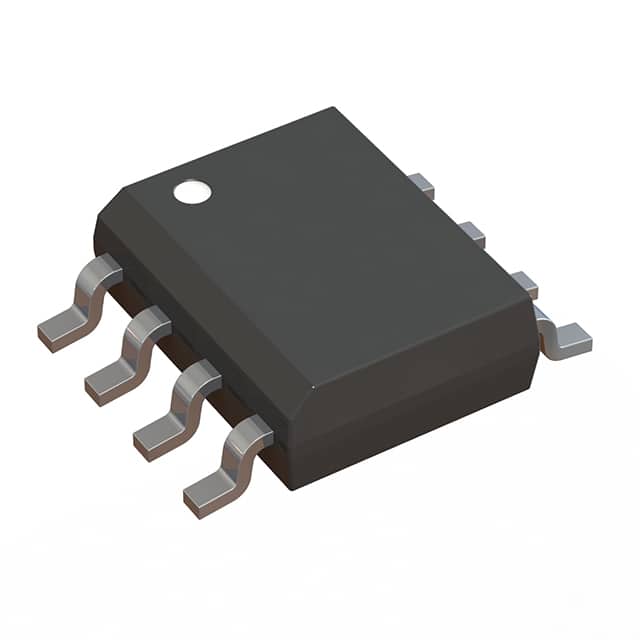

封装 SOIC-8
封装 SOIC-8
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
