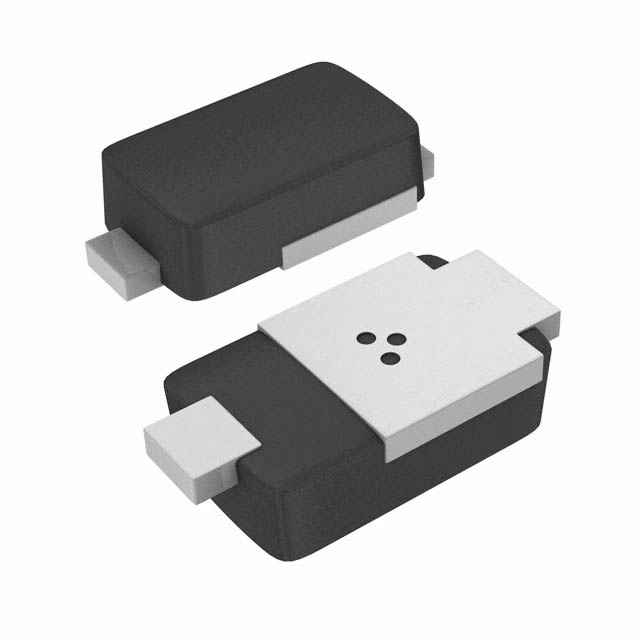

VISHAY SMP17A-M3/84A TVS二极管, TVS, TRANSZORB eSMP系列, 单向, 17 V, 27.6 V, SMD, 2 引脚
The TRANSZORB eSMP series surface-mount Transient Voltage Suppressor Diode offers 400W peak pulse power capability with a 10/1000µs waveform. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Ideal for automated placement
- .
- Available in unidirectional
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- Halogen-free
- .
- -55 to 150°C Operating junction temperature range
工作电压 17 V
击穿电压 18.9 V
电路数 1
针脚数 2
钳位电压 27.6 V
最大反向击穿电压 20.9 V
脉冲峰值功率 400 W
最小反向击穿电压 18.9 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-220AA-2
封装 DO-220AA-2
工作温度 -55℃ ~ 150℃
包装方式 Cut Tape CT
制造应用 Industrial, Automotive, 通用, Lighting, Consumer Electronics, Sensing & Instrumentation, Computers & Computer Peripherals, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMP17A-M3/84A Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMP17-M3/84A 威世 | 类似代替 | SMP17A-M3/84A和SMP17-M3/84A的区别 |
SMP17A-M3/85A 威世 | 类似代替 | SMP17A-M3/84A和SMP17A-M3/85A的区别 |
