IPL1-102-02-S-D-K

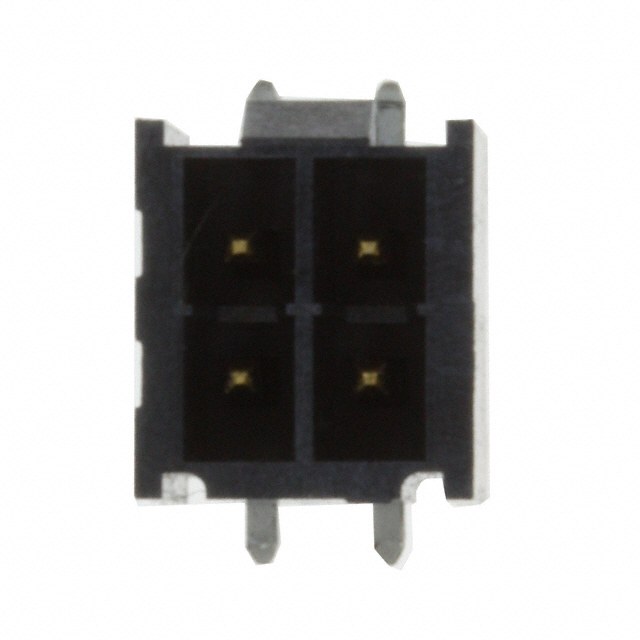

IPL1-102-02-S-D-K图片1

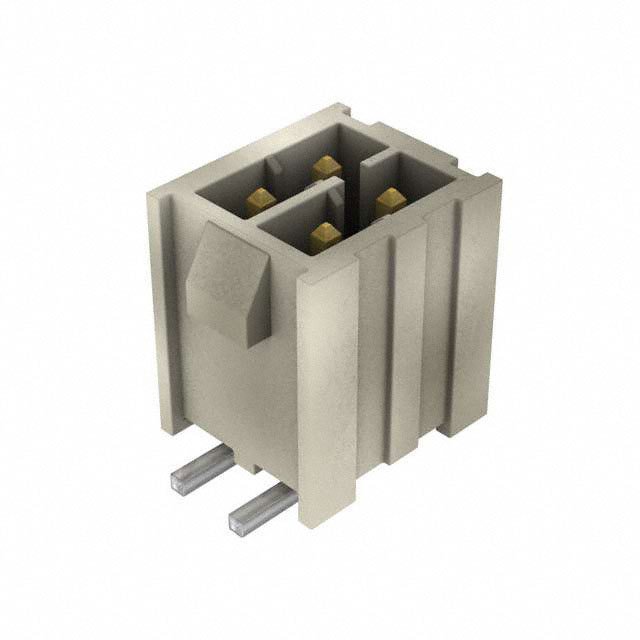

IPL1-102-02-S-D-K图片2
IPL1-102-02-S-D-K图片3
IPL1-102-02-S-D-K图片4
IPL1-102-02-S-D-K图片5
IPL1-102-02-S-D-K概述

线至板连接器, 2.54 mm, 4 触点, 针座, IPL1 Series, 表面安装 , 2 排

The mini-power terminal strip power connector from is perfect for powering your circuit because it comes with the least amount of losses. This HDR connector"s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 954 VDC|675VAC. Its pitch is 2.54 mm. It has a header type gender. It has a straight body orientation. This connector has a single port. This device has a maximum current rating of 7.4 A/contact. IPL1-102-02-S-D-K is housed in liquid crystal polymer. Its 4 terminals use the solder termination method. This product is 6.6 mm long, 8.76 mm tall and 9.58 mm deep. This power connector has a minimum operating temperature of -55 °C and a maximum of 125 °C.

IPL1-102-02-S-D-K中文资料参数规格
技术参数

触点数 4

极性 Male

排数 2

针脚数 4

额定电流Max 7.4A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 675VAC, 954VDC

封装参数

安装方式 Surface Mount

外形尺寸

高度 8.76 mm

物理参数

颜色 Natural

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买IPL1-102-02-S-D-K
型号: IPL1-102-02-S-D-K
描述:线至板连接器, 2.54 mm, 4 触点, 针座, IPL1 Series, 表面安装 , 2 排
替代型号IPL1-102-02-S-D-K
型号/品牌 代替类型 替代型号对比

IPL1-102-02-S-D-K

Samtec 申泰电子

当前型号

当前型号

IPL1-102-02-L-DH-K

申泰电子

完全替代

IPL1-102-02-S-D-K和IPL1-102-02-L-DH-K的区别

IPL1-102-02-L-DH-K-TR

申泰电子

完全替代

IPL1-102-02-S-D-K和IPL1-102-02-L-DH-K-TR的区别
