TVS Diode Array for ESD and Latch-Up Protection 200W, SMF Series, Semtech200 Watts Peak Pulse Power tp = 8/20μs Transient protection for data lines to: IEC 61000-4-2 ESD ±15kV air, ±8kV contact IEC 61000-4-4 EFT 40A 5/50ns Protects I/O lines Low leakage current ### 瞬态电压抑制器,Semtech
Description
The SMF series TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events. They are designed for use in applications where board space is at a premium. Each device will protect up to five lines. They are unidirectional devices and may be used on lines where the signal polarities are above ground.
Features
ESD protection for data lines to
IEC 61000-4-2 ESD ±15kV air, ±8kV contact
IEC 61000-4-4 EFT 40A 5/50ns
Small package for use in portable electronics
Protects five I/O lines
Working voltage: 5V
Low leakage current
Low operating and clamping voltages
Solid-state silicon-avalanche technology
Applications
Cellular Handsets and Accessories
Cordless Phones
Personal Digital Assistants PDA’s
Notebooks and Handhelds
Portable Instrumentation
Digital Cameras
Peripherals
MP3 Players
额定电压DC 5.00 V
工作电压 5 V
电容 130 pF
额定功率 100 W
击穿电压 6 V
针脚数 5
耗散功率 100 W
钳位电压 12.5 V
测试电流 1 mA
最大反向击穿电压 6 V
脉冲峰值功率 100 W
最小反向击穿电压 6 V
击穿电压 6 V
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 6

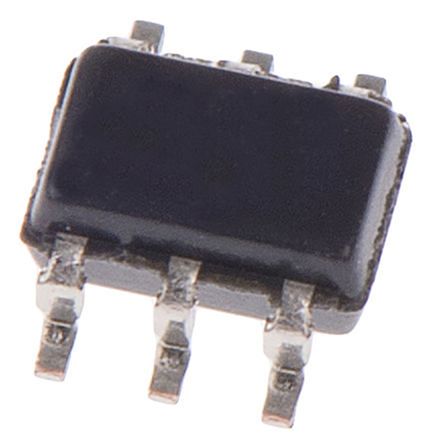

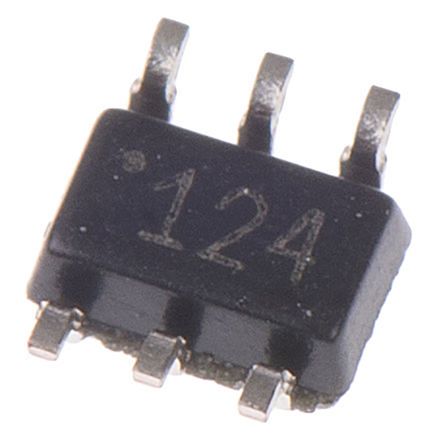

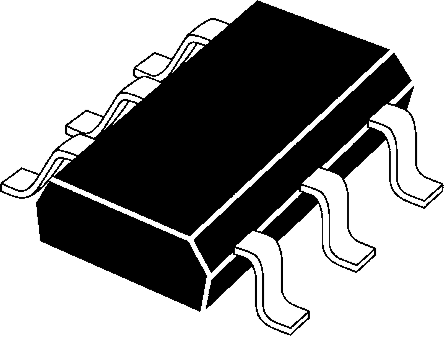

封装 SC-70-6
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-6
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMF05C.TCT Semtech Corporation | 当前型号 | 当前型号 |
SMF05CT1G 安森美 | 功能相似 | SMF05C.TCT和SMF05CT1G的区别 |
SMF05C.TC Semtech Corporation | 功能相似 | SMF05C.TCT和SMF05C.TC的区别 |
