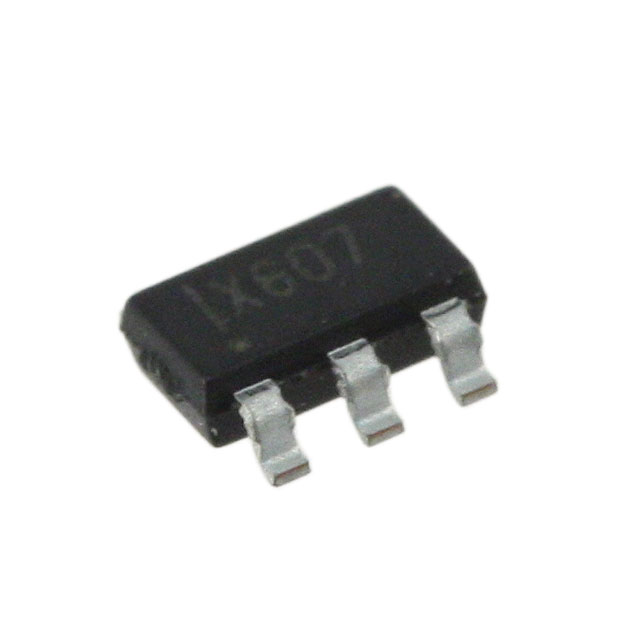

EXAR SP6126EK1-L 芯片, 降压控制器, TSOT-6
By using this voltage mode PWM controller from EXAR you can control voltage levels for encoding a message. With an output that has a voltage of 0.6 to 24 V, this is power management at its best. This voltage mode driver supports buck topology. It has single PWM output. You can operate this at a switching frequency of 690 kHz. This voltage mode driver has an operating temperature range of -40 °C to 125 °C. This device has a minimum operating supply voltage of 4.5 V and a maximum of 29 V. This voltage mode driver"s maximum duty cycle is 100Min %.
电源电压DC 4.50V min
输出接口数 1
输出电压 0.6V ~ 24V
供电电流 0.3 mA
针脚数 6
开关频率 690 kHz
占空比 100 %
最大占空比 100 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 29V
电源电压Max 29 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
高度 0.9 mm
封装 TSOT-23-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SP6126EK1-L Exar Corporation 艾科嘉 | 当前型号 | 当前型号 |
XRP6124HVES0.5-F 艾科嘉 | 功能相似 | SP6126EK1-L和XRP6124HVES0.5-F的区别 |
