SN74LVC3G34YZPR

三重缓冲门 TRIPLE BUFFER GATE

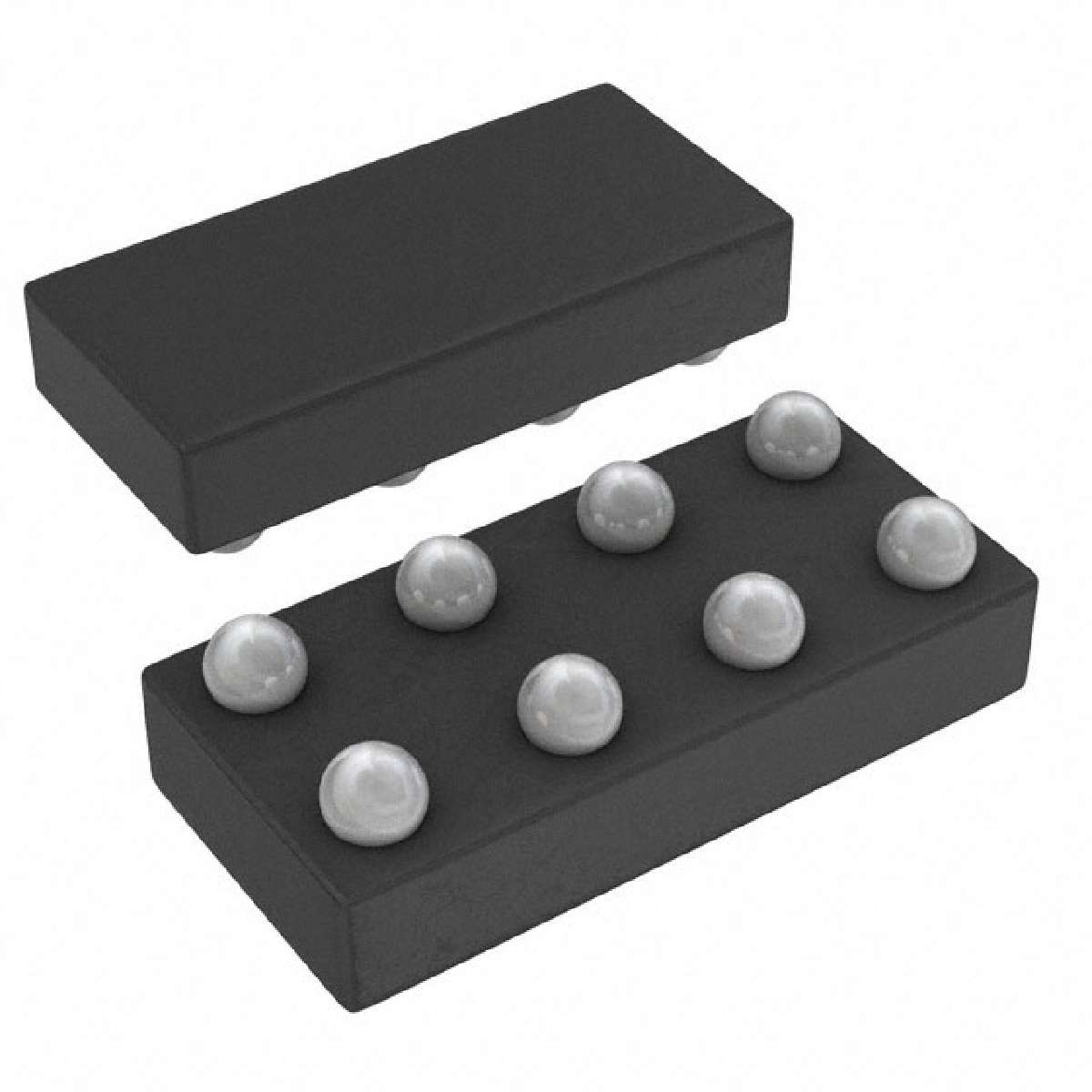

* Available in the Texas Instruments NanoFree Package * Supports 5-V VCC Operation * Inputs Accept Voltages to 5.5 V * Max tpd of 4.1 ns at 3.3 V * Low Power Consumption, 10-µA Max ICC * ±24-mA Output Drive at 3.3 V * Typical VOLP Output Ground Bounce CC = 3.3 V, TA = 25°C * Typical VOHV Output VOH Undershoot >2 V at VCC = 3.3 V, TA = 25°C * Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection * Can Be Used as a Down Translator to Translate Inputs From a Max of 5.5 V Down to the VCC Level * Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II * ESD Protection Exceeds JESD 22 * 2000-V Human-Body Model A114-A * 200-V Machine Model A115-A * 1000-V Charged-Device Model C101
