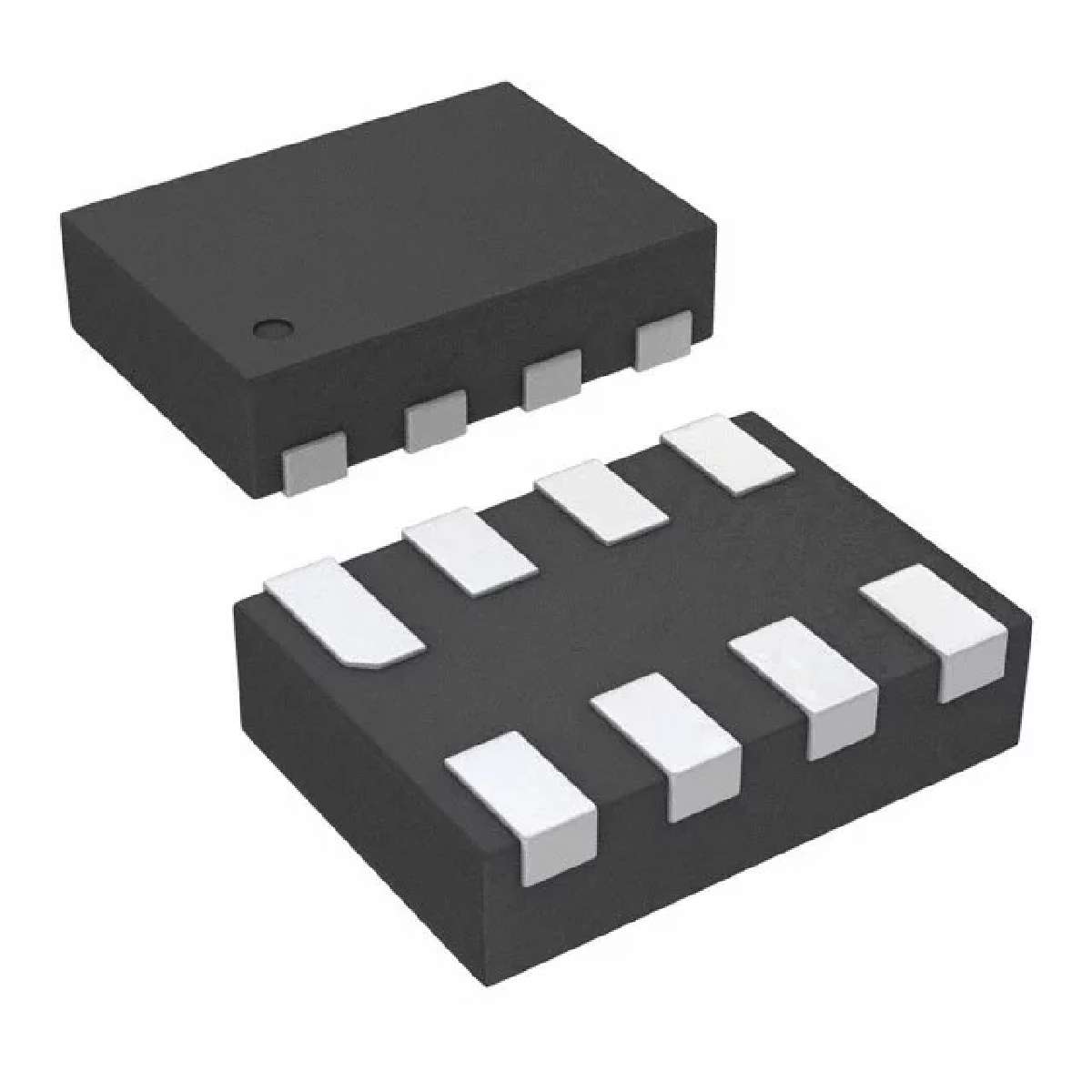

低功耗双路 2 输入正与门 8-X2SON -40 to 85
Thanks to Texas Instruments and their logic gates, you can simplify your circuit down to a fundamental level. This gate has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V.
电源电压DC 800mV ~ 3.60V
输出接口数 1
输出电压 3.6 V
电路数 2
位数 2
传送延迟时间 4.30 ns
电压波节 3.30 V, 2.50 V
逻辑门个数 2
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 8
封装 X2SON-8
封装 X2SON-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
