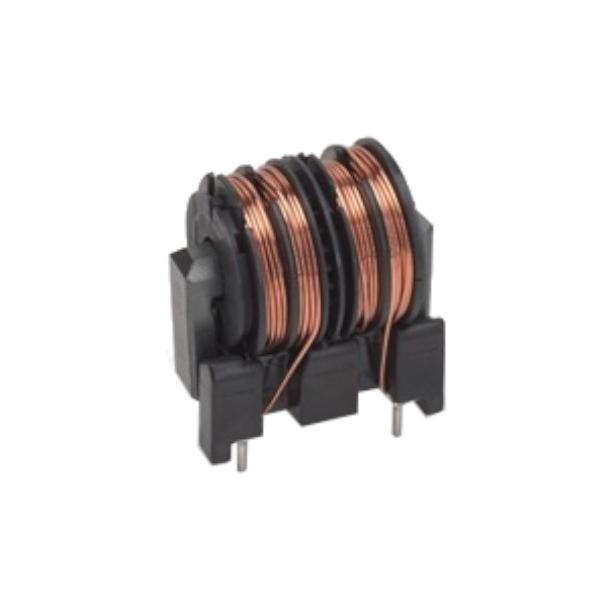

滤波器, 线性, 共模, 交流, 38 mH, SS30V系列
The SS30V series AC Line Filter suitable for consumer electronics and common mode choke applications.
- .
- Wide variety of sizes and specifications
- .
- Inductances up to 96mH
- .
- Rated currents up to 4.5A
- .
- DC Resistances as low as 0.06R
- .
- High inductance in a compact design
Avoid storage in high temperature, high humidity environment, atmosphere containing toxic gases or acid and near strong magnetic field.
Use within 6 months. If the product is used after a storage period of 6 months or longer, confirm its solderability before use.
额定电压AC 250 V
额定电流 1.2 A
电感 38 mH
测试频率 1 kHz
电阻DC） 600 mΩ
额定电流Max 1.2 A
工作温度Max 120 ℃
工作温度Min -25 ℃
额定电压 250 VAC
电阻DC Max 600 mΩ
安装方式 Through Hole
引脚数 4
封装 Vertical, 4 PC Pin
长度 31 mm
宽度 22.5 mm
高度 34 mm
封装 Vertical, 4 PC Pin
工作温度 -25℃ ~ 120℃
产品生命周期 Active
包装方式 Bulk
制造应用 Consumer Electronics, 消费电子产品, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
