ROHM Chip LED SML-31 Series LEDsThe SML-31 Chip LEDs, from ROHM Semiconductor, are in the 1608 package. The SML-31 LEDs are available in a range of colour variations and diverse luminous intensity types. 1.6 x 0.8 mm ### 可见光 LED，ROHM Semiconductor
・06031608mm size ・Hight-brightness blue visual chip
得捷:
LED BLUE-GREEN CLEAR 0603 SMD
欧时:
### ROHM Chip LED SML-31 Series LEDsThe SML-31 Chip LEDs, from ROHM Semiconductor, are in the 1608 package. The SML-31 LEDs are available in a range of colour variations and diverse luminous intensity types. 1.6 x 0.8 mm ### Visible Light LEDs, ROHM
安富利:
LED Uni-Color Blue Green 2-Pin Chip LED T/R
Chip1Stop:
LED Uni-Color Blue Green 2-Pin Case 1.6 x 0.8 mm T/R
Win Source:
Blue-Green 527nm LED Indication - Discrete 3.3V 0603 1608 Metric
针脚数 2
正向电压 3.3 V

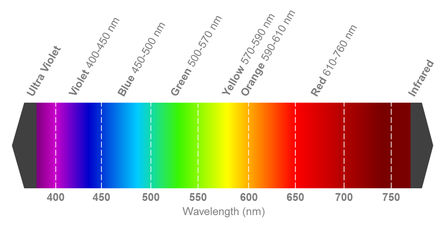

波长 527 nm
发光强度 200 mcd
视角 140°
透镜样式 Non-Diffused
峰值波长 518 nm
耗散功率 84 mW
测试电流 20 mA
正向电流 20 mA
正向电流Max 20 mA
工作温度Max 85 ℃
工作温度Min -30 ℃
耗散功率Max 84 mW
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.60 mm
宽度 800 µm
高度 0.90 mm
封装公制 1608
封装 0603
颜色 Blue
工作温度 -30℃ ~ 85℃
外观颜色 Transparent
产品生命周期 Not Recommended
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
