TEXAS INSTRUMENTS SN74LV4040APWT 芯片, 计数器, 异步二进制, 235MHZ, TSSOP-16
Easily switch into other logical states by implementing this binary counter shift register manufactured by Texas Instruments. This counter shift register has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 2.00V ~ 5.50V
输出接口数 12
针脚数 16
时钟频率 235 MHz
位数 12
电压波节 5.00 V, 3.30 V, 2.50 V
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

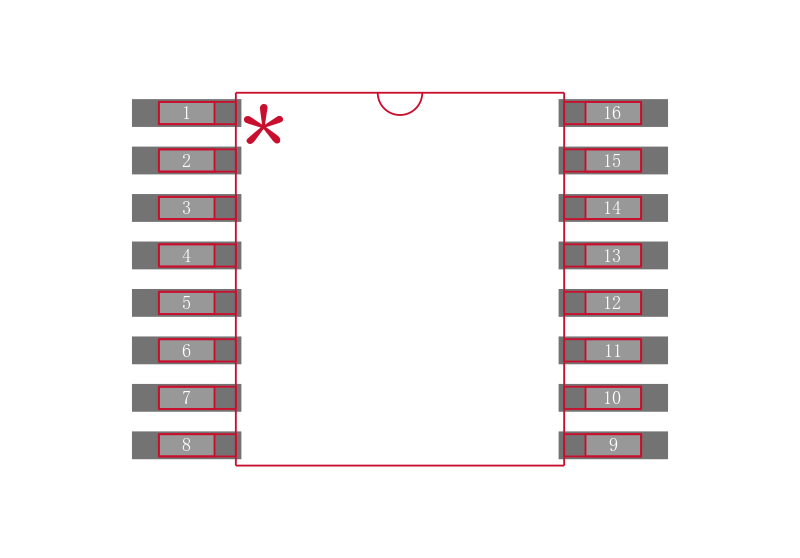

封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LV4040APWT TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV4040APWE4 德州仪器 | 完全替代 | SN74LV4040APWT和SN74LV4040APWE4的区别 |
SN74LV4040APWG4 德州仪器 | 完全替代 | SN74LV4040APWT和SN74LV4040APWG4的区别 |
SN74LV4040APWR 德州仪器 | 类似代替 | SN74LV4040APWT和SN74LV4040APWR的区别 |
